Dettagli:
Termini di pagamento e spedizione:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| MPO Connector: | Female / Male | Cable color: | Yellow |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | G652D / G657A /G657B |
| SC Connector Type: | UPC Simplex | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| Evidenziare: | Breakout MPO Patch Cord,SM MPO Patch Cord,UPC Simplex MPO Patch Cord |
||

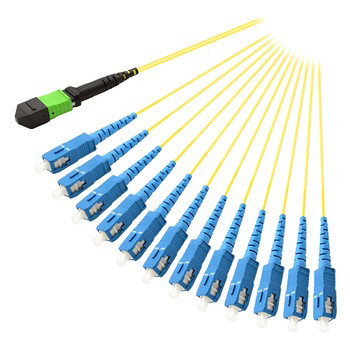

UPC Simplex Single Mode SM Breakout MPO Patch Cord
Single mode SM Breakout Patch Cord MPO-12 core SC UPC Fanout Cable Simplex connector
Description:
MPO cable assemblies are with 12 core MPO connector Female/male to 12 SC/UPC simplex connector. Single mode or mutil mode cable ,the cable is widely used for cable expanding in the data center.
Features:
12 core cable connection
Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
Specifications:
| arameter | Unit | SM Standard | SM Low loss | MM Standard | MM Low loss | |
| Insertion loss | Typical | dB | 0.35 | 0.2 | 0.35 | 0.2 |
| Max | 0.75 | 0.35 | 0.65 | 0.35 | ||
| Return loss | dB | APC≥50 | ≥ | ≥35 | ||
| PC≥40 | ||||||
| Repeatability | dB | ≤0.1 | ||||
| Interchangeabilty | dB | ≤0.3(Connector Randomly) | ||||
| Durability | dB | ≤0.3 | ≤0.3(change 1000 matings) | |||
| Vibration | dB | ≤0.3(10~55Hz) | ||||
| Operating Temperature | ℃ | -25~+70 | ||||
Order infomation:
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |

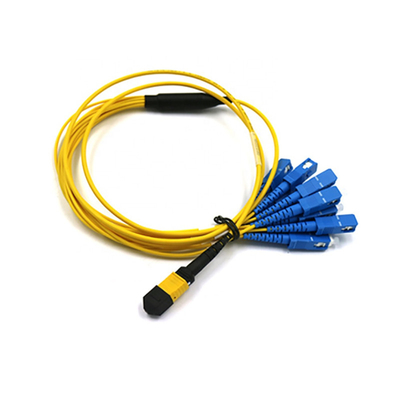

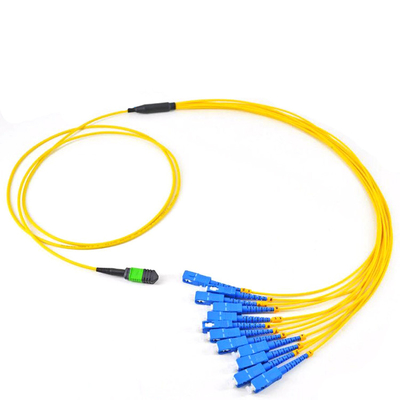

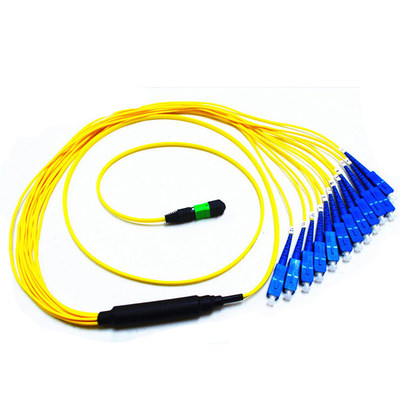

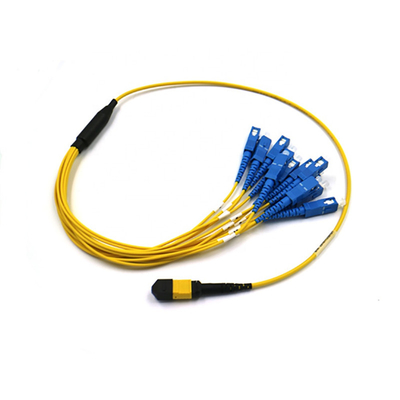

Drawing and Product Picture:
