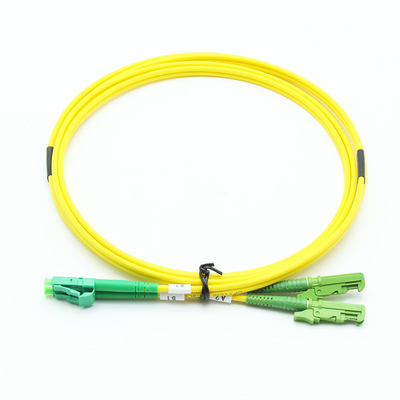

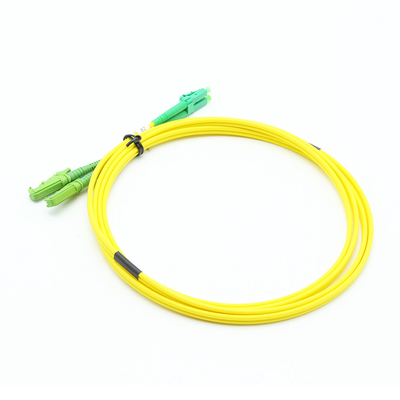

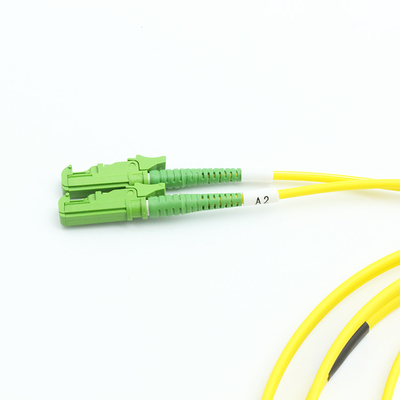

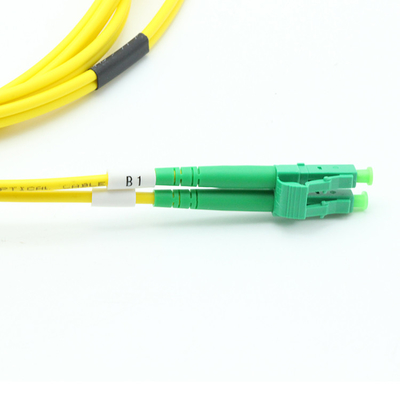

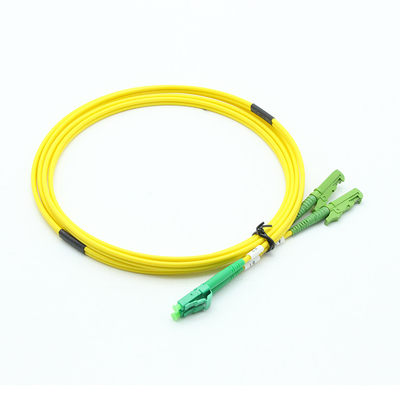

| Model Name:: | E2000 APC- LC APC Patch Cord | Cable color: | Yellow or customized |
|---|---|---|---|
| length: | 1m,2m,3m or customized | Insertion loss:: | ≤0.3dB |
| Return loss:: | SM APC≥60dB | Connector:: | FC,SC,LC,ST,MPO |
| Evidenziare: | LSH LC Fiber Optic Patch Cord,E2000 APC Fiber Optic Patch Cord,3.0mm Fiber Optic Patch Cord |
||
Fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, optical switch, or other telecommunication equipment. With a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box, which is known as "interconnect-style cabling".
Features:
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitting equipment
Defense combat readiness
Technical Specifications:
| Connector Type | LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC...etc... |
| Fiber Type | Single mode /Multimode |
| 50/125µm, 62.5/125µm (Multimode) OM2&OM1 | |
| 50/125µm, 10G (Multimode) OM3 | |
| Cable Type | Simplex, Duplex |
| Φ3.0mm, Φ2.0mm, Φ0.9mm | |
| Jacket: PVC or LSZH | |
| Insertion Loss | ≤0.10dB (For Single mode Master) |
| ≤ 0.25dB (For Single mode Standard) | |
| ≤ 0.25dB (For Multimode) | |
|
Return Loss (Single mode)
|
UPC ≥ 50dB |
| SPC ≥ 55dB | |
| APC ≥ 60dB (typ.65dB) | |
| Repeatability | ±0.10dB |
| Operating temperature | -40°C ~ +85°C |
|
Geometry Requirement (Single mode)
|
Ferrule End face Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30μm (For Master) | |
| Apex Offset ≤ 50μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm |
Products Options:
| Cable Diameter | Connector Type | Fiber Type | Cable Type | Polish | Cable Length |
| 0.9mm | LC | 9/125µm SM | Simplex | PC | 1M |
| 2.0mm | FC | 50/125µm MM | Duplex | APC | 2M |
| 3.0mm | SC | 62.5/125µm MM | Multi-fiber | UPC | 3M |
| ST | OM3 | Ribbon | 5M | ||
| MU | OM4 | ......... | |||
| D4 | Customized | ||||
| MTRJ | |||||
| MPO | |||||
| DIN |
