| Product Name:: | LC Uniboot patch cord | Cable color: | Yellow,orange,aqua,violet or Customized |
|---|---|---|---|
| Return Loss:: | PC≥50dB; UPC≥55dB,APC≥65dB | Insertion loss:: | UPC≤0.2dB, APC≤0.3dB |
| fiber cores:: | 2cores | Application:: | FTTH solution |
| Evidenziare: | LC Uniboot Patch Cord,Duplex 2.0mm Optic Fiber Cable,Suncall LC Connector Optic Fiber Cable |
||
High quality LC Uniboot Patch cord Optic Fiber Cable OM3 OM4 LC/UPC-LC/UPC Duplex 2.0mm Suncall LC connector
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. CY fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Description
Cable Color: Yellow
Fiber counts: 1 Fiber (Simplex)
Fiber type: Singlemode (9/125um)
Connector type: ST-SC
Connector counts: 2 connectors
Application
¨ Telecommunication
¨ CATV, FTTH, LAN
¨ Fiber oiptic sensors
¨ Optical transmission system
¨ Test equipment
Features
¨ Screw-thread coupling mechanism
¨ Ceramic ferrules connectors
¨ Low insertion loss, high return loss
¨ Excellent mechanical endurance
¨ High credibility and stability
¨ Good in repeatability and exchangeability
¨ 100% Insertion, Return Loss, End Face and Interference inspection
Specification
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MTRJ, MPO |
|||||||
SM |
MM |
SM |
MM |
SM |
MM |
||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
||
Insertion Loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
Repeatability |
dB |
≤0.1 |
|||||||||
Durability |
dB |
≤0.2dB typical change, 1000 matings |
|||||||||
Operating temperature |
ºC |
-20 ~ +75 |
|||||||||
Storage temperature |
ºC |
-40 ~ +85 |
|||||||||

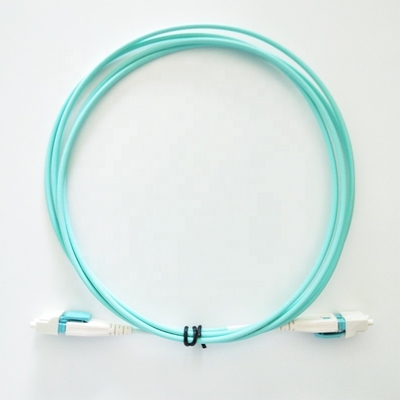

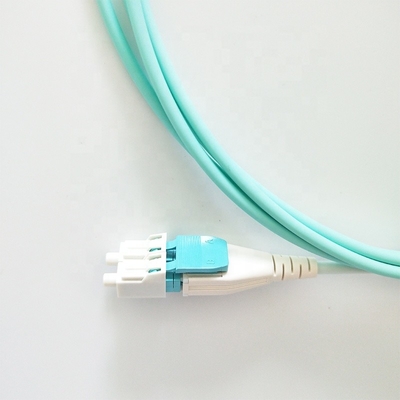

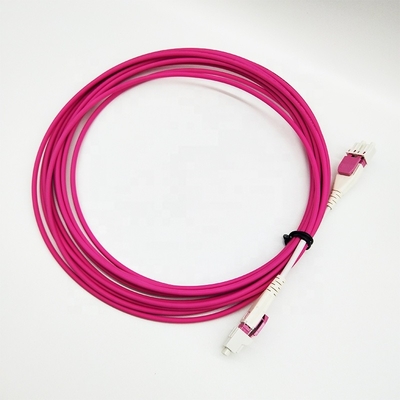

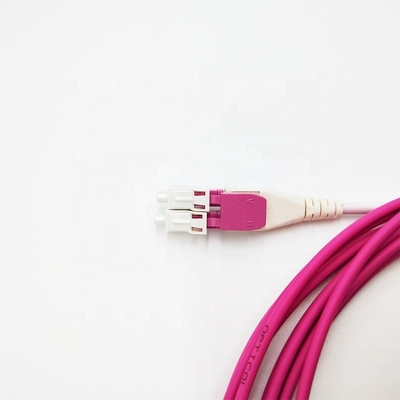

Product Pictures
