Dettagli:
Termini di pagamento e spedizione:
|
| Connector: | LC Connector | Ferrule End-face: | UPC |
|---|---|---|---|
| Core type: | SMF ,G652D,OS1 | Fiber Quantity: | 0.9mm/2.0mm/3.0mm |
| Cable length: | Customized | Cable Jacket: | LSZH |
| Tolerance: | 5cm | Structure: | IL<0.2dB,RL>50dB |
| Evidenziare: | 0.9mm Fiber Optic Pigtail,CCTC ferrule Fiber Optic Pigtail,Single mode LC UPC Optic Pigtail |
||

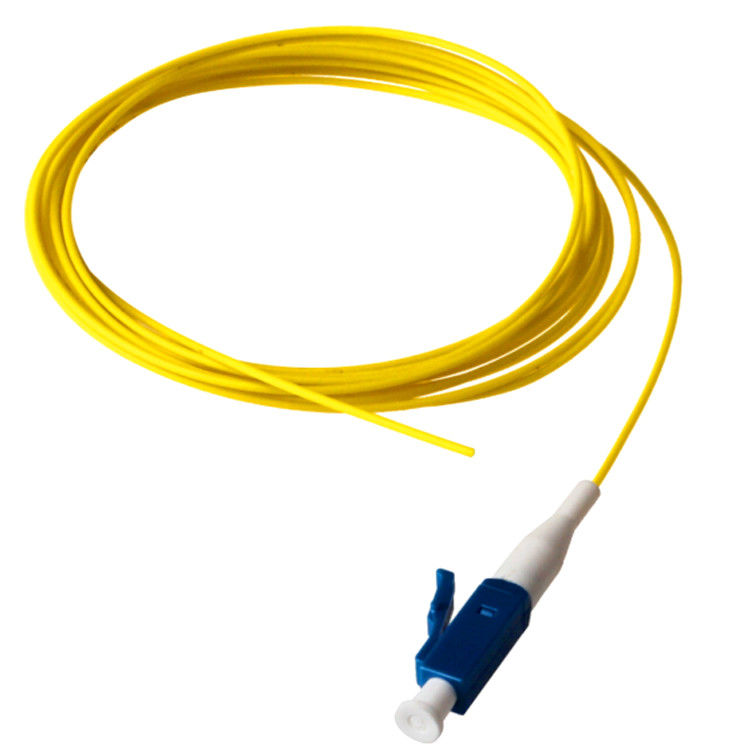

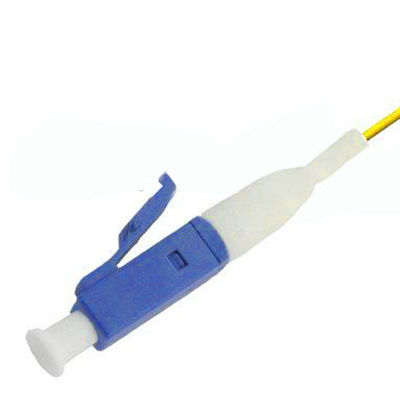

Single Mode LC UPC CCTC Ferrule 0.9mm Fiber Optic Pigtail
LC stands for Lucent Connector. It is a small form-factor fiber optic connector,half the size of the SC
| Parameter | Insertion loss(typical) | Return loss | Operating wavelength | Exchangeability | Vibration | Operating temperature | Storage temperature | |
| unit | dB | dB | nm | dB | dB | ℃ | ℃ | |
| LC | UPC | ≤0.2 | ≥50 | 1310, 1490,1550 | ≤0.2 | ≤0.2 | -40~75 | -45~85 |
| APC | ≤0.3 | ≥60 | ||||||
Order Information:
1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4
2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)
3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail
4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm
5. Cable length: 2Meter, 5Meter, 10Meter, customized length
6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color
7. Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable
