| Ferrule End-face: | UPC, APC(8°） | Ferrule brand: | CCTC |
|---|---|---|---|
| Boot diameter: | 0.9/2.0/3.0mm | Fiber type: | SM / MM |
| Color: | Blue / Beige /Green | Structure: | Simplex / Duplex |
| Boot type: | 0° / 30° /45 ° | Material: | PEI / FBT |
| Evidenziare: | PEI Fiber Optics Accessories,FBT Fiber Optics Accessories,lc pc Fiber Optics connector |
||

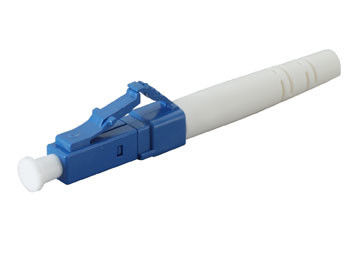

LC PC Connector SM MM PEI FBT Fiber Optics Accessories
* PBT material with flame retardant

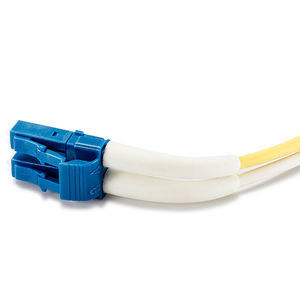

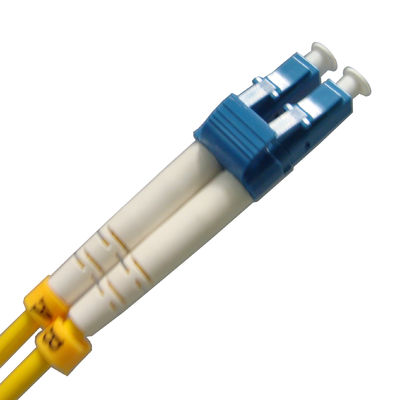

* Simplex or Duplex
* ANSI , IEC ,TIA/EIA , NTT and JIS standard compatible

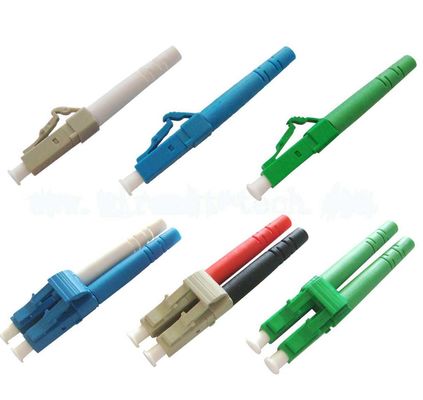

* UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
* Precision mechanical dimensions
* Zirconia ferrule PC or 8 degree APC diameter125~128 um high concentricity
* Single mode, Multimode and Angle PC

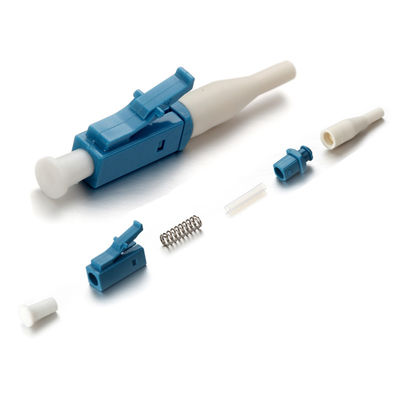

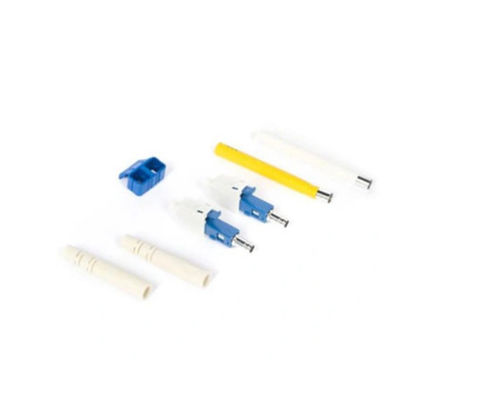

* Multi-piece type or one-piece type is available
* All parts compliant with ROHS
Features:
Application:
Ordering Information:
| Items | Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Insertion Loss | <0.2dB | <0.3dB | ||||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Durability | <0.1dB typical change, 500 matings |
|||||||
