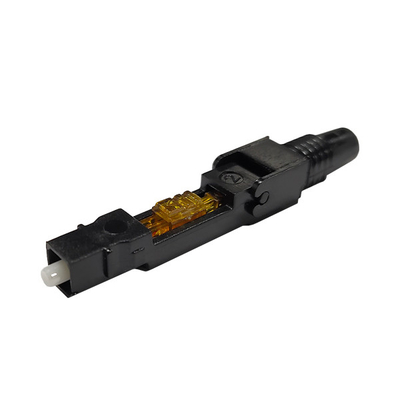

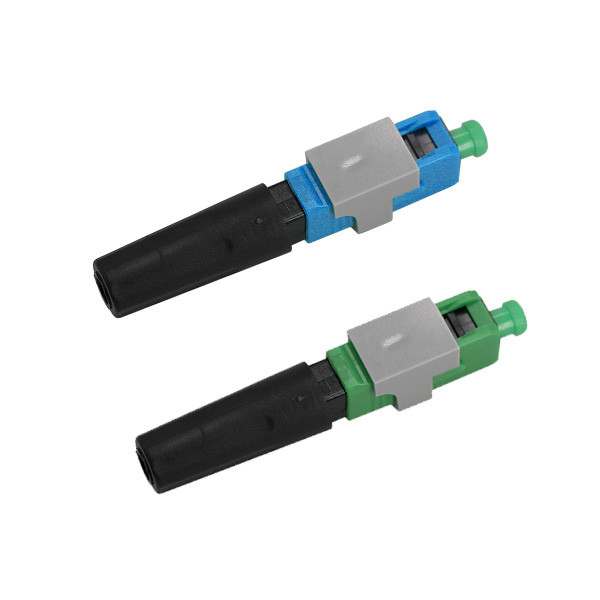

| Product name: | Fast Connector | Color: | Green |
|---|---|---|---|
| Connector: | SC UPC APC | Length: | 55MM |
| Insertion cycle: | more than 1000 times | Application: | Telecom networks FTTX CATV |
| Evidenziare: | UPC APC quick assembly connector,FTTH SC quick assembly connector,SC UPC APC quick assembly connector |
||
| Fiber Optic Mechanical Splicer | |
| IL | ≤0.15dB |
| RL | ≥40dB |
| Optical fiber diameter | 125μm |
| Operating Mode | Single and double mode |
| Tensile strength | >3kg |
| Operating Temperature | -40~+85℃ |
| Fiber tight strength | >250g |
- Substitute for operation of embedded optical fiber connector for live and reduce the cost.
- For cable damage
- Easy for connection by simple and exquisite V-groove structure
- The selection of high quality optical fiber match liquid which is less volatile ensures the long-term to work.
- No need connection tool
- Tensile strength is 3kg max
- Stability of connection by stainless holder
- Easy for re-assembling & disassembling without special tool
- Can be reconnected in the field
Telecom network
Data network
Data transmission
LAN
Test Equipment
