| Item: | MPO Simplex adapter | Cap Color: | Black |
|---|---|---|---|
| Shape: | Rectangle Type | Test: | 100% |
| Materials: | Flaneresistant plastic | Type: | Simplex |
| Fiber type: | Singlemode / Mutilmode | Cap Shape: | Round or Square |
| Evidenziare: | Simplex MPO Fiber Optic Adapter,Singlemode MPO Fiber Adapter,Mutilmode MPO Fiber Adapter |
||
Singlemode Mutilmode Simplex MPO Fiber Optic Adapter
MPO Singlemode Multimode Simplex Fiber Optic Adapter Black color Flameresistant Plastic material
Description:
Features:
Compliant with: ANSI, Bellcore, TIA/EIA, and IEC standards
Low insertions loss and high return loss
Excellent repeatability and changeability
Simplex and duplex available
With ceramic or metal ferrules optical performance 100% factory tested
High temperature stability
Application:
CATV Network
Data Processing networks
Active device termination
Telecommunication networks
Wide Area Networks(WANs)
Test Equipment
Specification:
| Modle Number | MPO Adapter |
| Inserion Loss | ≤0.3dB |
| Durability | >1000 times |
| Operating Temp | -40~70°C |
| Material | Metal |
| Application | FTTx,LAN,CATV,Telecom |
| Certification | RoHS,SGS,CE |
| Connector Type | ST-ST |
| Polish Type | UPC;APC |
| Fiber Mode | Singlemode; Multimode; OM3; OM4;OM5 |
| Color | SM:Red / Black MM:Yellow |

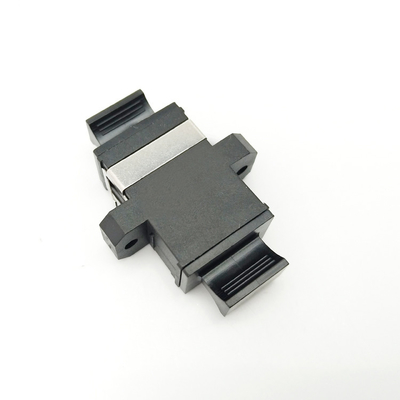

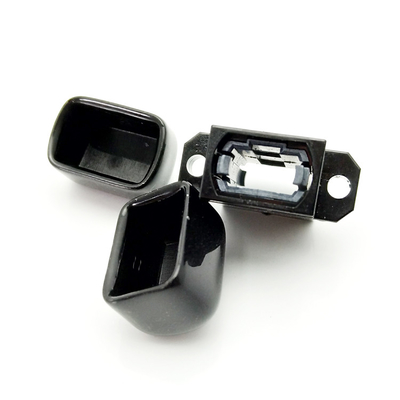

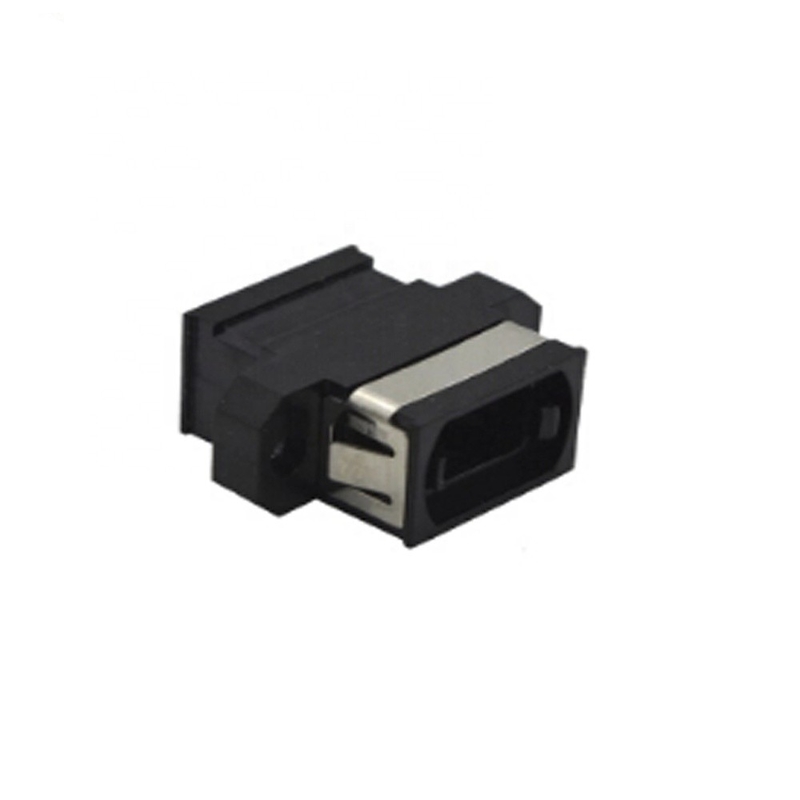

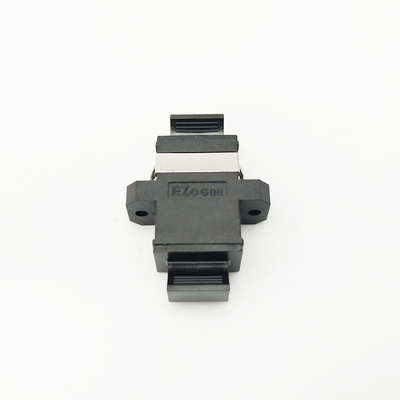

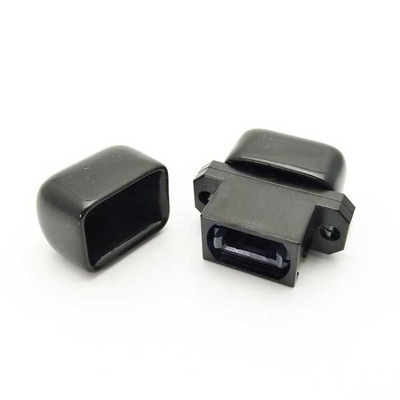

Drawing and Pictures:
