Dettagli:
|
| Product name: | Attenuator | Fiber Mode: | Single mode, Multimode |
|---|---|---|---|
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation range: | 0-30dB |
| Return loss: | PC≥45 dB; UPC≥50 dB ;APC ≥60 dB | Repeatability: | 1000 times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating temperature: | -40-80°C |
| Connector: | SC APC | ||

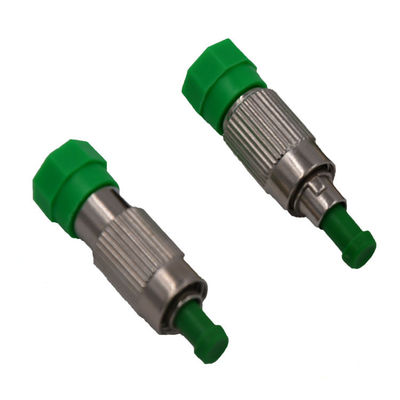

| Evidenziare: | FC APC Optical Fiber Attenuator,10db Plug Type attenuator,10db Male To Female attenuator |
||
Optical attenuator is a passive device used to reduce the power level of an optical signal. It could be applied to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
CY COM offers LC,FC,SC,ST and MU fixed attenuator with different attenuation level, from 1dB to 30dB.
Features :
Application:
Specification:
| Item | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nmc

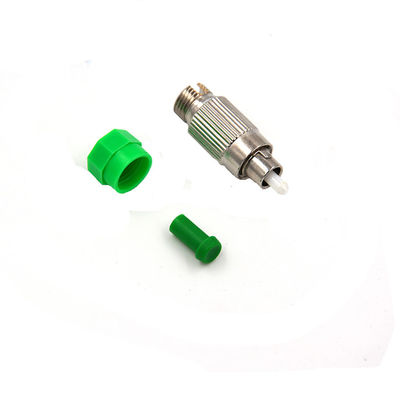

Product picture
Factory introduction
Shenzhen CY COM product Co., Ltd, established in 2008 located in Shenzhen China, is a professional manufacturer engaged in the research, development, production, sale and service of Fiber optic products and network products.
Quality and standards are the foundation of CY COM, we have passed many quality system verifications, like ISO9001 and RoHS. Dedicated to strict quality control and thoughtful customer service, Our products are selling well in all cities and provinces around China, and overseas.
The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
