| Channel: | 1X2 | Connector: | SC/UPC |
|---|---|---|---|
| Package way: | ABS | Operating Wavelength: | 1260～1650(nm) |
| Cable diamter: | 3.0/2.0mm | ||
| Evidenziare: | 1x2 PLC Fiber Optic Splitter,1x2 Fiber PLC Splitter,SC UPC Fiber PLC Splitter |
||

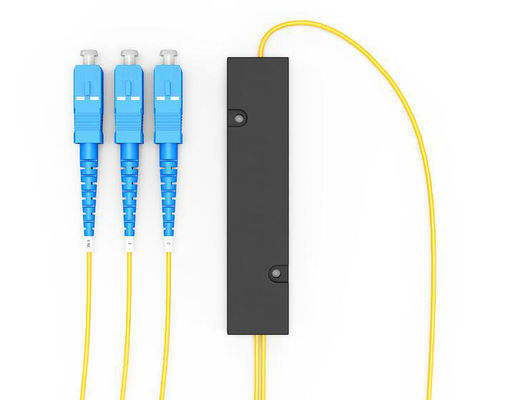

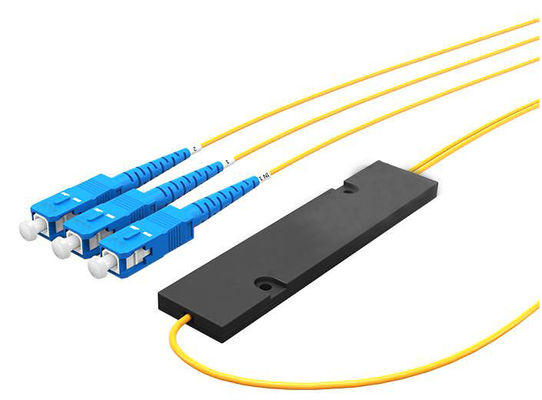

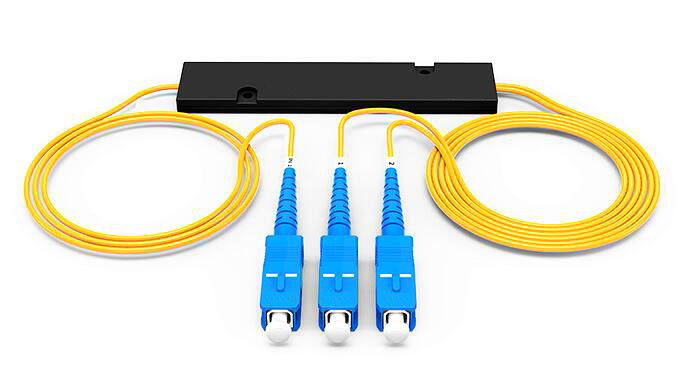

1260nm 2.0mm SC UPC 1x2 PLC Fiber Optic Splitter

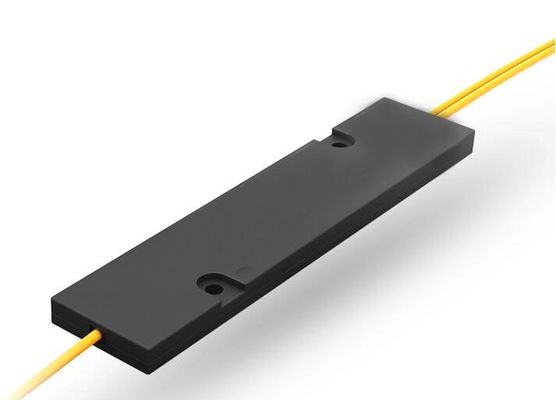

1x2 PLC Fiber Optic Splitter with SC/UPC connector,ABS package
Description:

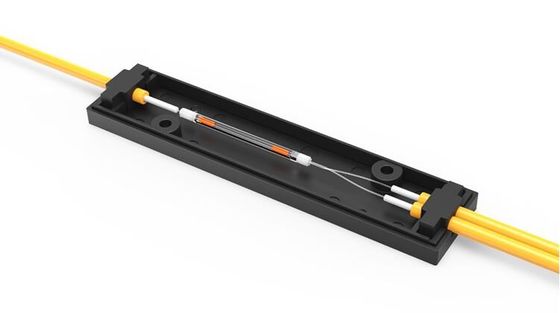

Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features:
￭ Low Insertion loss
￭ Low PDL
￭ Compact Design
￭ Good channel-to-channel uniformity
￭ Wide Operating Wavelength (1260nm-1650nm)
￭ Wide Operating Temperature (-40℃-85℃)
￭ High Reliability and Stability
Applications
￭ FTTX systems ; ￭ PON ; ￭ CATV links ; ￭ Optical signal distribution.
Specifications
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 | 20./20.4 | 23.8/24.2 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | ||||||
| Storage Temperature (℃) | -40～85 | ||||||
| Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 | N/A |
| Module Dimension (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) | 50×7×4 | 50×7×4 | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |
Table 2 – 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 | 24.5 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.35 | 0.4 | 0.4 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | ||||||
| Storage Temperature (℃) | -40～85 | ||||||
| Device Dimension (mm) | 40×4×4 | 50×4×4 | 50×4×4 | 50×7×4 | 60×7×4 | N/A | N/A |
| Module Dimension (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | N/A | N/A |
Notes:
1. Specified without connectors.
2. Add an additional 0.15dB loss per connector.
