Dettagli:
Termini di pagamento e spedizione:
|
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Jacket Material: | PE |
|---|---|---|---|
| Fiber quality: | 1-2 / 4-6 / 8-24 | Jacket Color: | Black/Customized |
| Cable diameter: | 2.0x5.0/ 2.0x5.0 /3.0x9.0 | Package: | Wooden reel ,3KM/reel |
| Certificazione: | ISO9001/CE/ROHS | Application: | FTTH |
| Evidenziare: | GJYXFCH,GJYXCH,GJYXFCH Optical Fiber Cables |
||

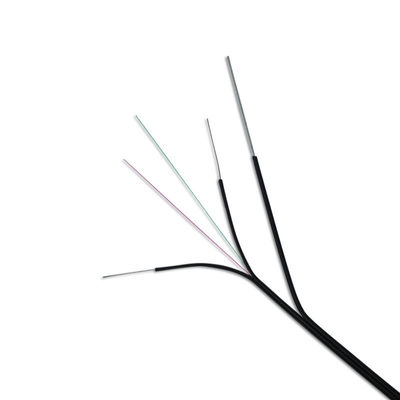

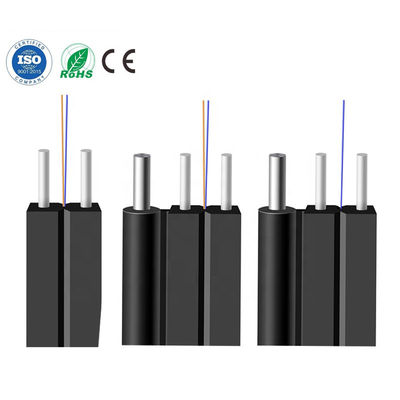

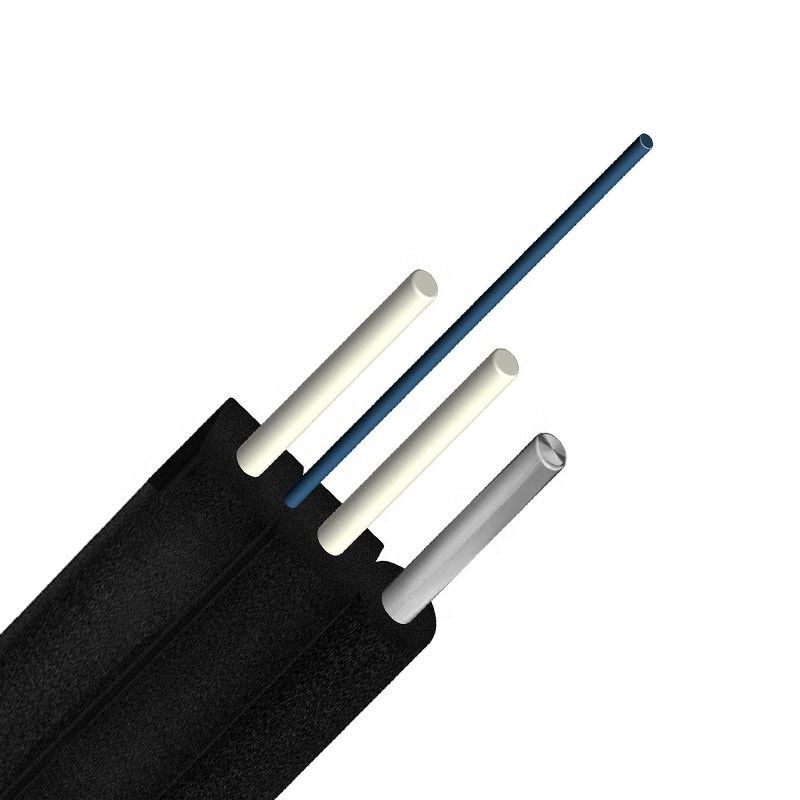

FTTH HOME CABLING SYSTEM GJYXCH GJYXFCH Fiber optic Drop Cable With steel wire
Description:

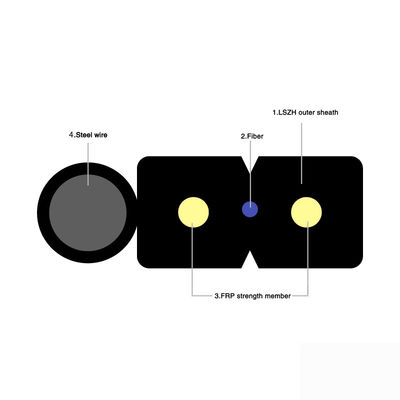

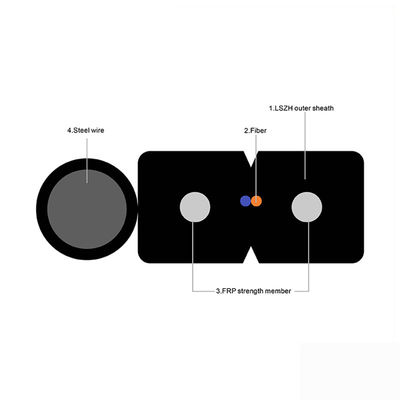

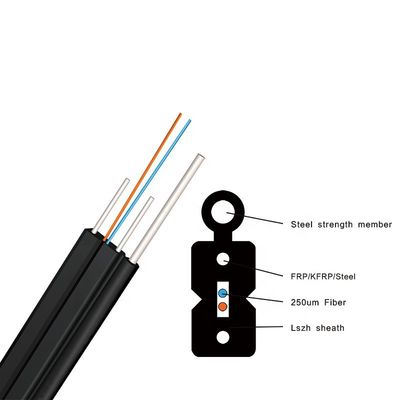

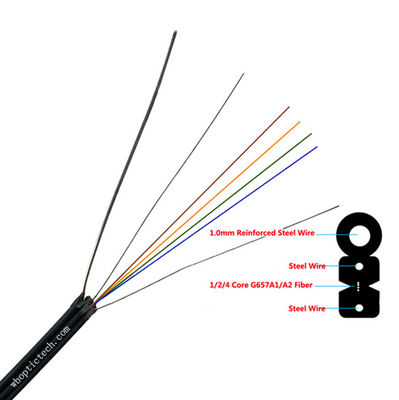

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Last this cable is completed with black or white LSZH sheath.
Features:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP/Steel wires strength members ensure good performance of crush resistance to protect the fiber.
3. Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
4. Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
6. Low smoke, zero halogen and flame retardant sheath.
Application:
1. Outdoor aerial application
2. Used in the FTTH projects
3. High speed optical routes in building
4. High performance optical network operation
Technical Data
Performance
