| Application: | Telecommunication, (Data Center) | Apply port: | SC/FC/LC/ST |
|---|---|---|---|
| Capacity: | 16 cores | Weight: | 0.5kg |
| Material: | PC+ABS | Color: | Black / Gray / White |
| Evidenziare: | LC ST Rack Mount Patch Panels,8 port sc FC fiber patch panel,ROSH LC ST patch panel |
||

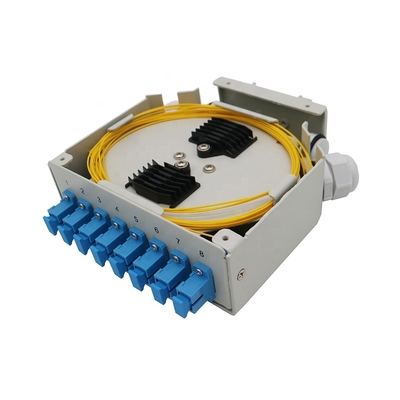

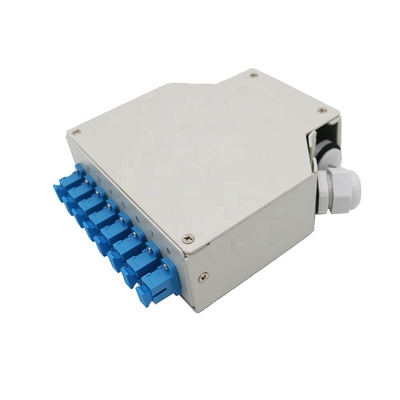

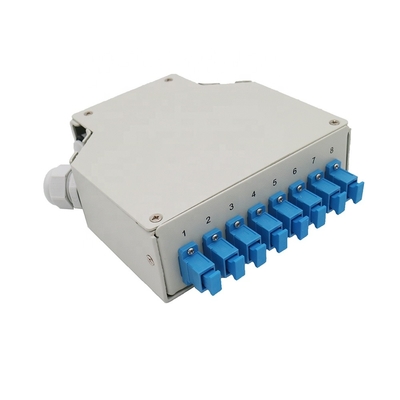

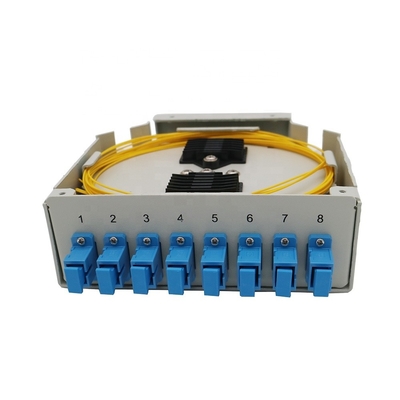

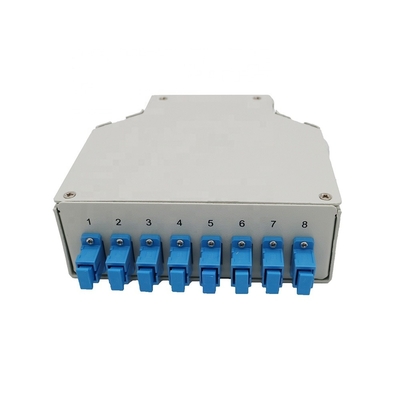

16 Cores 8 Port SC FC LC ST Rack Mount Patch Panels
Optic fiber 8 Port SC Rack mount Patch panel DIN Rail Box Fibra Optica Terminal Box
Description:
DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. All of the Din Rail boxes can be fully populated.
Features:
Front Panels:
6 SC duplex adapters
6 ST/LC duplex adapters
4/6 ST simplex adapters
8 LC simplex adapters
8 LC Duplex adapters
12 SC/LC simplex adapters
12 LC duplex adapters
12 ST simplex adapters
Others on request
Applications:
Specifications:
| Operating temperature: | -40°C - +70°C |
| Storage temperature: | -40°C - +70°C |
| Relative humidity: | ≤90% (when the temperature is below 30°C) |
| Atmosphere pressure | 62Kpa – 106Kpa |
| Insulating resistance: | ≥2x104 MΩ / 500V (DC) |
| Insertion loss: | IL≤0.30dB(PC),IL≤0.30dB(APC) |
| Return loss: | PC≥40.0dB ,UPC≥50.0dB,APC≥60.0dB |
| Interchangeability | ≤0.20dB |
