| Product name: | Fiber Optic Rack Mount ODF | Type: | Racks & Enclosure |
|---|---|---|---|
| Fiber Capacity: | 12, 24, 48, 96 or 144 ports | materials: | Cold rolled carbon sheet steel |
| Storage Temperature: | -45°C~+60°C | size: | 482*300*340 mm |
| Evidenziare: | Optical FTTX ODF,24 Ports FTTX ODF,2U Rack Mount ODF |
||
2U 24 Ports Rack Mount Fiber Optical FTTX ODF
Fiber Optic 19 inch 2U 24 ports Rack Mount ODF Fiber Optical Patch Panel for FTTX
An optical distribution frame (ODF) is a passive device which terminates cables, allowing arbitrary interconnections to be made.
1. DESCRIPTION
The 3U closed frame Optical Distribution Frame is a modulated design with drawable trays inside and constructed from cold-rolled steel. It is available unloaded or pre-installed with your choice of fibre optic adapters and pigtails. It is ideal for indoor fibre optic cables connection storage, distribution and management. It features an interchangeable adapter plate for ease of adapter swapping.
2. Dimensions
Length: 482m x Width: 300mm x Height: 340mm
3. FEATURES
» Latch door
» Constructed from cold rolled steel
» Can be rack mounted and wall mounted
» Can be used in 19’’, 23’’ standard distribution frames
» Suitable for ribbon and single fibre
» Interchangeable adapter plate
» 24C, 36C, 48C, 72C, 96C optional, with or without fibre optic
pigtails and adapters
4. ODF DATASHEET
| Environmental temperature: | -25 - 55°C |
| Relative humidity: | <85%(when the temperature is below 30°C) |
| Atmosphere pressure: | 70~106Kpa |
| Insulating resistance: | >2×104 MΩ/500VDC |
| Voltage-resistance strength: | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |

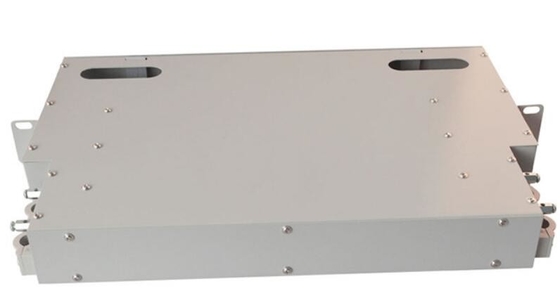

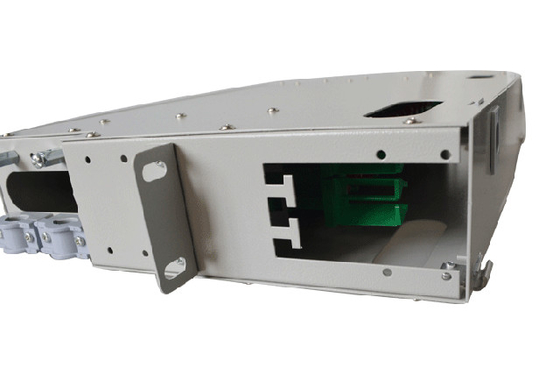

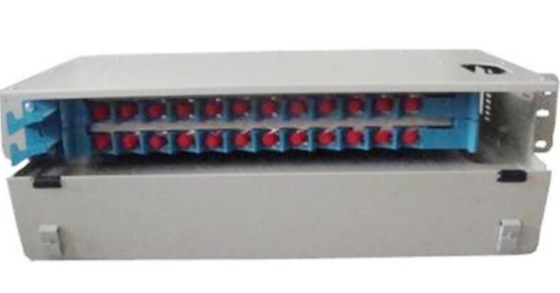

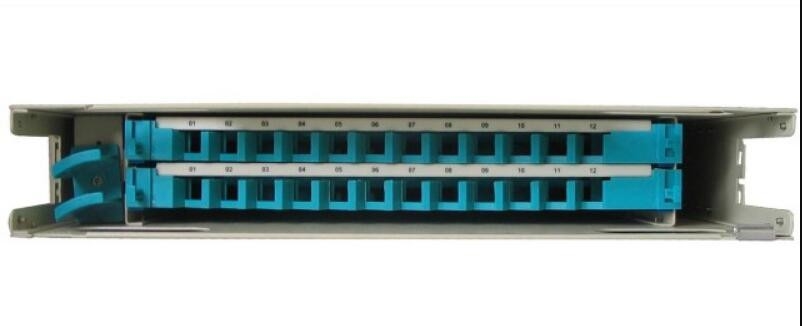

5. ODF FRAME PICTURES
