| Channel: | 8 | Wavelength: | 1530.33~1560.61（21~59 TU grid） |
|---|---|---|---|
| Fiber Type: | G652D，G657A or others | Pigtail diameter: | Bare fiber /900um loose or tight tube |
| Pigtail length: | 0.5m/1m/1.5m/2m | Connector: | None/SC/FC/LC/ST or others |
| Evidenziare: | SC WDM CWDM DWDM,G652D CWDM DWDM,8 Channel CWDM |
||
100G 200G 8 Channel G652D SC WDM CWDM DWDM
50G/100G/200G 8 Channel Dense Wavelength Division MultiplexingMux or DeMux
1. Product information

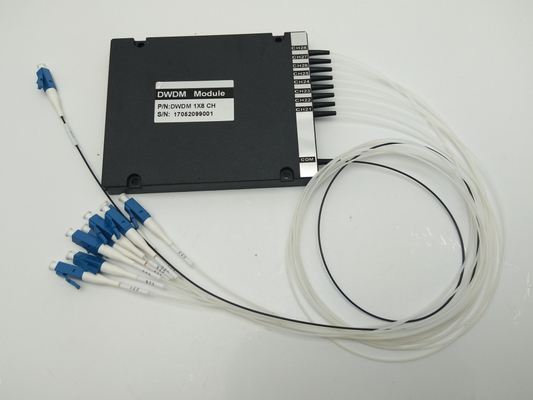

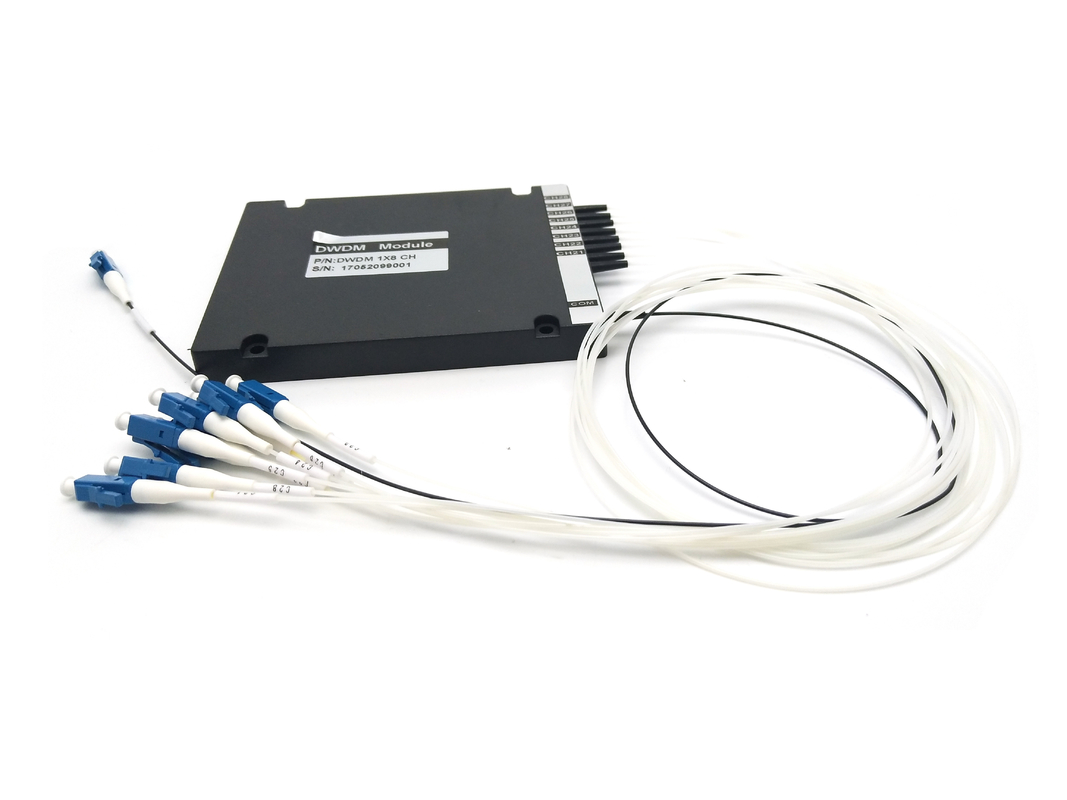

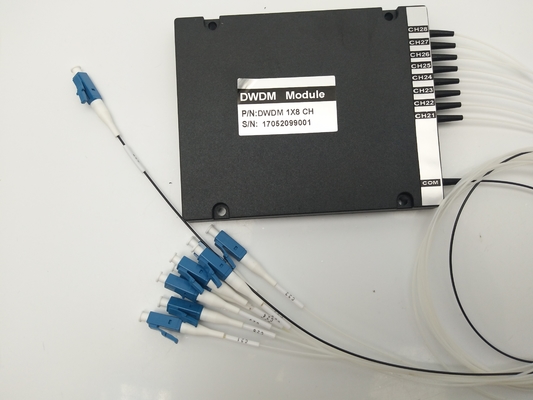

Description: 1×8CH DWDM Mux/Demux,900um(2.0mm,3.0mm),1m with customized connector,100×80×10mm ABS package
2. Specification:
| Parameters | Unit | Specifications | ||||
| Channel Count | Ch | 8 | ||||
| Channel Center Wavelength | nm |
C45,43,41,39,37,35,33,31 |
||||
| Channel Passband | Min | nm | ±0.5 | |||
| Insertion Loss | Max | dB | <2.5 | |||
| Isolation | Adjacent Channel | Min | dB | 30 | ||
| Non-Adjacent Channel | Min | dB | 40 | |||
| Passband Ripple | Max | dB | 0.3 | |||
| Polarization Dependent Loss | Max | dB | 0.1 | |||
| Directivity | Min | dB | 55 | |||
| Return Loss | Min | dB | 50 | |||
| Polarization Mode Dispersion | Max | ps | 0.1 | |||
| Power Handling | Max | mW | 500 | |||
|
Pigtail and Connector Type |
COM | 0.9/mm black loose tube with connector | ||||
| Other ports | 0.9mm white loose tube with connector | |||||
| Fiber Type | SMF-28e | |||||
| Fiber length | m | ≥1 | ||||
| Operating Temperature | °C | -40 ~ 110 | ||||
| Storage Temperature | °C | -40 ~ 85 | ||||
| Package Dimension | mm | (L)100×(W)80×(H)10 | ||||
Remark:Specifications include connector.
3. Package drawing:
4. Configuration drawing:
